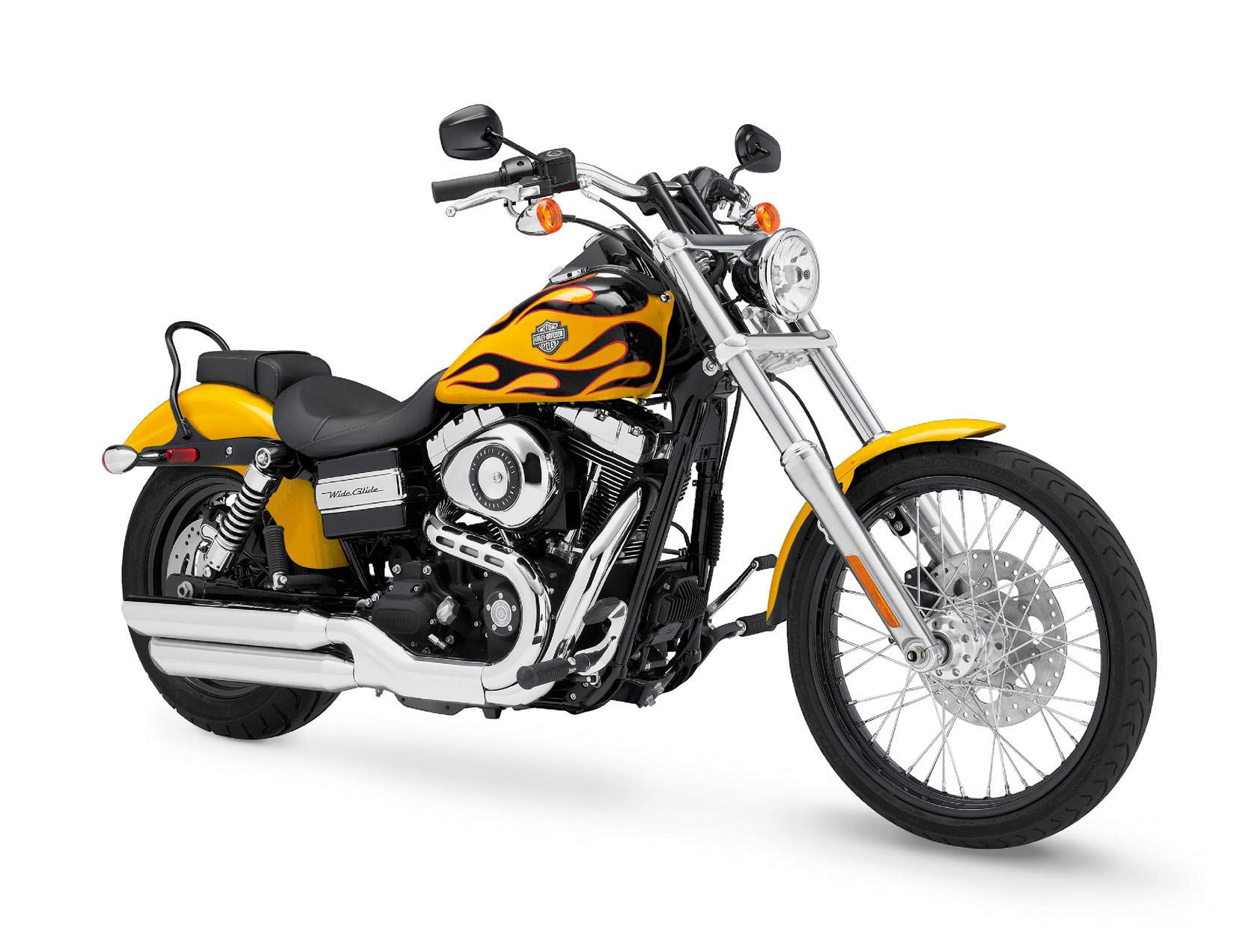

Harley Davidson FXDWG Dyna Wide Glide

Make Model

Harley Davidson FXDWG Dyna Wide Glide

Year

2010 - 11

Engine

Four stroke, 45� V-Twin, Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder

Capacity

1584 cc / 96 cu-in
Bore x Stroke 95.3 x 111.1 mm
Cooling System Air cooled
Compression Ratio 9.2:1

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Ignition

Single-fire, non-wasted, map-controlled spark ignition
Starting Electric

Max Torque

124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Clutch Multi-plate, wet

Transmission

6 Speed
Final Drive Belt
Primary Drive Chain, 34/46 ratio
Gear Ratio 1st 9.311 /  2nd 6.454 /   3rd 4.793  /  4th 3.882  /  5th 3.307 /  6th 2.790
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded

Front Suspension

49 mm with polished aluminum fork triple clamp and dual-rate springs,

Rear Suspension

Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded, Coil over shock ,

Front Brakes

Single 300mm disc 4 piston caliper

Rear Brakes

Single 292mm disc 4 piston caliper

Front Tyre

80/90-21

Rear Tyre

180/60B17
Rake  34�
Trail 132 mm / 5.2 in.
Dimensions Length  2387.6 mm / 94.0 in
Width   944.8 mm / 37.2 in
Height  1214.1 mm / 47.8 in
Wheelbase 1715 mm / 67.5 in
Seat Height Laden    648 mm  /  25.5 in.
Unladen .678 mm  /  26.7 in
Gross Vehicle Weight Rating 492.2 kg  / 1085 lbs

Dry Weight

293 kg / 647 lbs
Wet Weight 310 kg / 683.4 lbs

Fuel Capacity

17.8 Litres / 4.7 US gal

The Wide Glide has been resurrected for another run in 2010. Last seen as a special 105th Anniversary model in 2008, the latest addition to the Dyna family has lowered front and rear suspension that drops the seat height to 25.5 inches. Team that with its signature wide front end, a black-wire sissy bar on the back sitting on a chopped rear fender and you�ve got a brand new motorcycle with ageless, throw-back styling.

Its 21-inch tall front wheel sits out at 34-degrees on a 49mm front fork with extra space between the fork and frame created by wide polished aluminum triple clamps. Even the fuel tank has been tilted up .75-inch to give it more chopper flair. Internal wiring and drag-style handlebars sitting on four-inch-high black risers keep the front end clean.

The back end features the chopped rear fender that sits above new Michelin Scorcher tires. The large, central tail lamp has been abandoned for dual red LED rear stop/turn/tail lights. As a result of bobbing the fender, the license plate mount has been moved to the left side of the chassis.

New Helical cut 5th gear for improved transmission sound
� Black powder-coated powertrain with chrome covers
� Chrome, �Tommy Gun� 2-1-2 collector exhaust with dual mufflers
� 4.7-gallon Street Bob�-style fuel tank, raised at the front .75-inch
� 40-spoke laced steel wheels with black rims
� 21-inch front wheel
� Front and rear suspension lowered one inch
� 34 degree fork angle
� Wide polished aluminum triple clamps
� Chopped rear fender with chrome supports
� Low solo seat with separate passenger pillion
� Stainless steel internally-wired handlebar on four-inch black riser
� Wrinkle-black battery box and fender struts
� Black mirrors and headlight bucket
� Black one-piece wire sissy bar
� Dual red LED lights combine the stop/turn/tail functions
� Side-mounted license plate
� Low-profile tank console with electronic speedometer

The new Wide Glide� is a Dyna� Big Twin done up old-school chopper style � a low, stretchedout
custom with drag bars and forward foot controls that give its rider a real fists-in-the-wind profile. The LED stop/turn/tail light combo and side-mounted license plate keep the chopped rear fender clean.

The Harley-Davidson Dyna family has its roots in the factory-custom revolution of the 1970s, and combines Big Twin performance with an extended FX front end. Dyna models deliver great handling and bold styling.

� Rubber-mounted Twin Cam 96� V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI), rated at 92 ft. lbs. of torque
� 6-speed Cruise Drive� transmission
� Exposed under-seat battery box
� Exposed rear coil-over shock absorbers
� Forward-mounted rider footpegs with brake and shift levers
� Optional Harley-Davidson� Smart Security System with hands-free security fob
� Optional Vivid Black Flame paint scheme
